Retaining Wall Design in Belfast: Practical Geotechnical Solutions for Challenging Ground

Sound ground. Sound decisions.

LEARN MORE

A developer we worked with last year on a site off the Lisburn Road nearly lost six months on a boundary dispute because the initial retaining wall design didn't account for the thick layer of Belfast clay underlying the gravels. The original proposal showed a gravity wall that would have rotated under the first wet winter. We stepped in, re-ran the ground investigation with targeted CPT testing to map the soft clay lens precisely, and redesigned the structure as a cantilever wall with a deeper shear key. Belfast's geology does not reward guesswork. The city sits on a complex mix of glacial till, alluvial deposits, and the notoriously compressible Belfast clay, which means every retaining wall design must start from a clear understanding of what is actually below the surface. Our team brings local experience and a practical approach that keeps your project programme on track.

A retaining wall is a system, not a product. The soil, the water, and the structure either work together in Belfast's glacial deposits, or they work against each other at your expense.

Our service areas

Slopes & Walls

Slope stability analysis ›Active/passive anchor design ›Retaining wall design ›
VIEW ALL SLOPES & WALLS ›

Underground Excavations

Geotechnical analysis for soft soil tunnels ›Geotechnical design of deep excavations ›Geotechnical excavation monitoring ›
VIEW ALL UNDERGROUND EXCAVATIONS ›

Roadway

Flexible pavement design ›Rigid pavement design ›CBR study for road design ›
VIEW ALL ROADWAY ›

How we work

The most common mistake we see across Northern Ireland is treating a retaining wall as a standalone structural element rather than a soil-structure interaction problem. You can specify the right reinforcement and concrete grade, but if the backfill drainage is poorly detailed or the bearing stratum is overestimated, the wall will fail at the joints long before the steel yields. In Belfast, where groundwater levels can sit just a metre below ground surface in the Lagan Valley, hydrostatic pressure behind the wall often governs the design. We size weep holes and drainage blankets based on local rainfall data from the Met Office, not generic assumptions. For walls over 2.5 metres, we routinely model the global stability of the slope behind the wall using limit equilibrium methods, checking for deep-seated circular failures that would bypass the structure entirely. The design package we deliver includes a full construction sequence because we know the contractor on the ground needs clear, unambiguous drawings when excavating close to neighbouring foundations in tight city terraces.

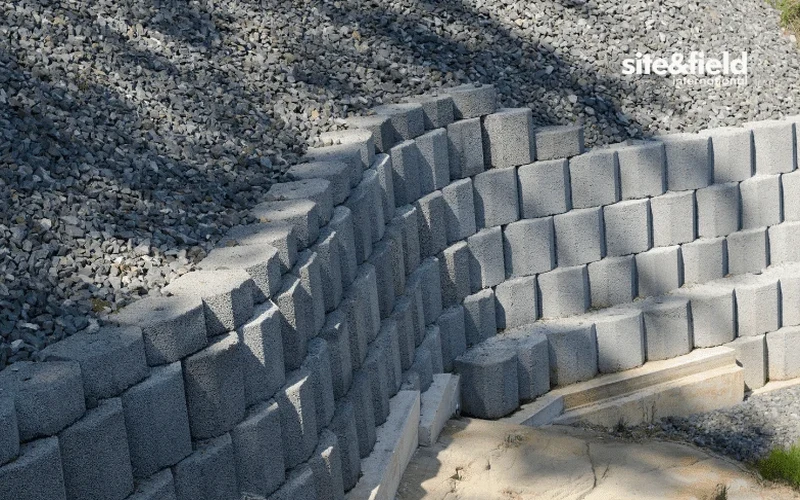

Retaining Wall Design in Belfast: Practical Geotechnical Solutions for Challenging Ground
Technical reference — Belfast

Local ground factors

One observation that comes up repeatedly during site inspections in Belfast is how older Victorian retaining walls in the city still stand, while some modern replacements from the 1990s show severe cracking. The difference almost always comes down to drainage. A wall built in glacial till with free-draining backfill will last decades with minimal maintenance. The same wall backfilled with on-site silty clay and no drainage chimney will start leaning within five winters. Frost action in the upper metre of backfill also opens up cracks that let water in, and once the saturation front reaches the retained soil, the effective stress drops and the wall begins to move. We design for this practical reality, specifying granular backfill sources within economic haul distance of the Belfast area and detailing filter compatibility so that fines from the natural ground do not migrate into the drainage layer over time. Ignoring these details might save a few thousand pounds at tender stage, but the remediation costs later are never worth it.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Relevant standards

BS 8002:2015 – Code of practice for earth retaining structures, Eurocode 7 (BS EN 1997-1:2004) – Geotechnical design, BS 5930:2015+A1:2020 – Code of practice for ground investigations, BS EN 1992-1-1:2004 – Design of concrete structures, BS EN 1993-5:2007 – Design of steel structures: piling

Typical values

ParameterTypical value
Design standard for earth retaining structuresBS 8002:2015 + Eurocode 7 (BS EN 1997-1:2004)
Typical wall types in BelfastCantilever RC, embedded sheet pile, king post, gabion, gravity mass concrete
Bearing stratum preferenceGlacial till (stiff, low compressibility) over Belfast clay where feasible
Groundwater managementWeep holes, granular drainage blankets, filter geotextiles per BS 8006-1
Surcharge loadingHighway loading to BD 37/01 where applicable; building surcharge per BS EN 1991-1-1
Seismic consideration (UK)Low seismicity; Eurocode 8 generally not critical but checked for Category III structures
Corrosion protection for steel elementsSacrificial thickness per BS 8002 Annex A; galvanising to BS EN ISO 1461

Frequently asked questions

How much does a retaining wall design cost for a typical Belfast residential project?

For a typical residential retaining wall in Belfast, the design fee ranges from £750 to £2,960 depending on wall height, ground conditions, and whether the wall is near a boundary or highway. A straightforward 1.2-metre garden wall on competent glacial till sits at the lower end, while a 3-metre wall retaining a driveway on Belfast clay requires more analysis and falls toward the upper end.

Do I need planning permission for a retaining wall in Belfast?

In most cases, a retaining wall over 1 metre high adjacent to a highway, or over 2 metres elsewhere, requires planning permission from Belfast City Council. If the wall forms part of a larger development, it will be covered under the main planning application. We can advise on the engineering documentation needed to support your application.

What ground investigation is needed before you start the retaining wall design?

At minimum, we need a ground investigation that identifies the depth and strength of the bearing stratum, the groundwater level, and the properties of the soil to be retained. In Belfast, this typically means a combination of boreholes or CPT soundings to penetrate through the superficial deposits into the underlying glacial till. Laboratory testing on undisturbed samples for shear strength and consolidation parameters is essential when the wall is founded on or retains soft Belfast clay.

How long does the design process take from instruction to issue of drawings?

For a straightforward retaining wall under 2.5 metres in height, we typically deliver design calculations and construction issue drawings within two to three weeks of receiving the complete ground investigation report. More complex walls, or those requiring third-party checking for building control or warranty providers, may take four to five weeks. We keep the programme tight because we understand that holding up a groundworks contractor on a Belfast site costs money every day.
